The rock crawler is powered by a 550 brushed motor and comes fully built complete with 2.4GHz radio system and rechargeable 7.2V Li-ion battery pack with charger. With a model that looks like this you are going to want to hit the off road pretty hard so with that in mind all the electronics have been upgraded to waterproof and dust proof versions and the differentials are impact resistant. This is a precision manufactured high quality model with a massive feature list, check out the full list below.
4 WHEEL DRIVE SYSTEM
This model has a 4 Wheel Drive system with CNC shafts and gear. This hobby grade RC car also features locked front and rear differentials that further improves climbing ability.
45 DEGREE STEERING
The 45 degree steering angle allows you to easily manoeuvre while rock climbing.
STEEL STEERING LINKAGES
Metal steering linkages for off-road durability.
PC SHELL WITH ACCESORIES
Detailed scale appearance.
ADVANCED ROCK CLIMBING
Full linkages and shafts for great performance while climbing.
METAL GEARED SERVO & LARGE BATTERY
Chassis mounted 10kg ball raced servo & Velco strapped battery.

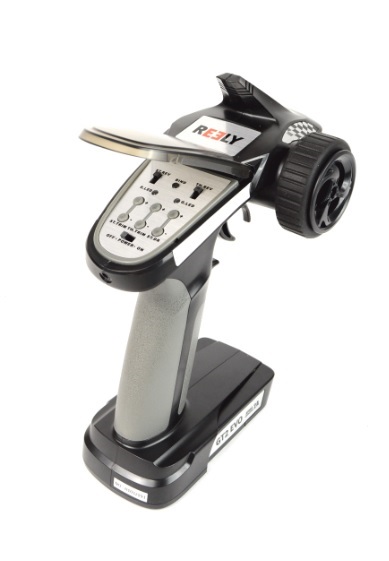

2.4GHz RADIO SET
All new 2.4GHz radio technology is used. This is more reliable than the old FM equipment and allows multiple RC cars to be used in the same area without interference.
|Motor / Engine
- Length: 562mm
- Height: 268mm
- Width: 236mm
- Tyre diameter: 110mm
- Ground clearance: 63mm
- Wheelbase: 313mm
- Motor: 550 brushed motor
- ESC: Hobbywing 40A Crawler
- Transmitter: GT-2 EVO 2.4G
- Battery: 7.2V Li-Ion 2000mAh hard case
- LED Lights: 4 PCS
- Servo: 10kg High torque servo
The compact centre transmission allows for a wide range of gearing choices. The overall ratio can be adjusted using different pinions allowing high speed or competition level crawling speed. Three gear layout with adjustable heavy duty slipper, dual slipper pads for more precise tuning and greater holding power. Metal motor plate with fully sealed gear cover. 3-piece front and rear propshafts with aluminium spline slider and steel ends. The truck is fully ballraced throughout.

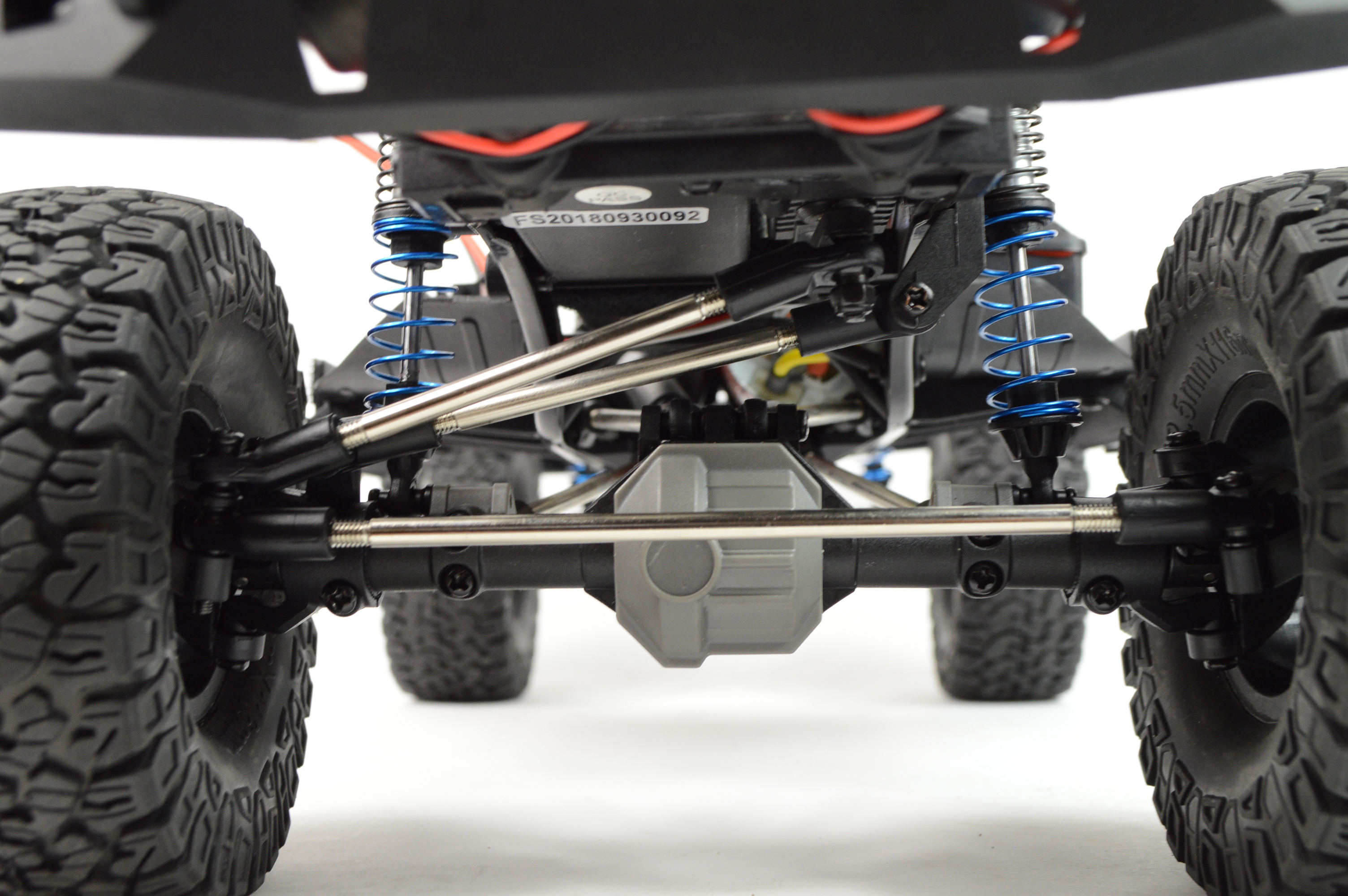

High input gears for added ground clearance & better driveshaft angles. Axle housings moulded in 1 piece for added strength. Metal diff lockers in front and rear. Bolt on link mounts for greater adjustability. Universal joint driveshafts allow up to 45 degrees of steering.

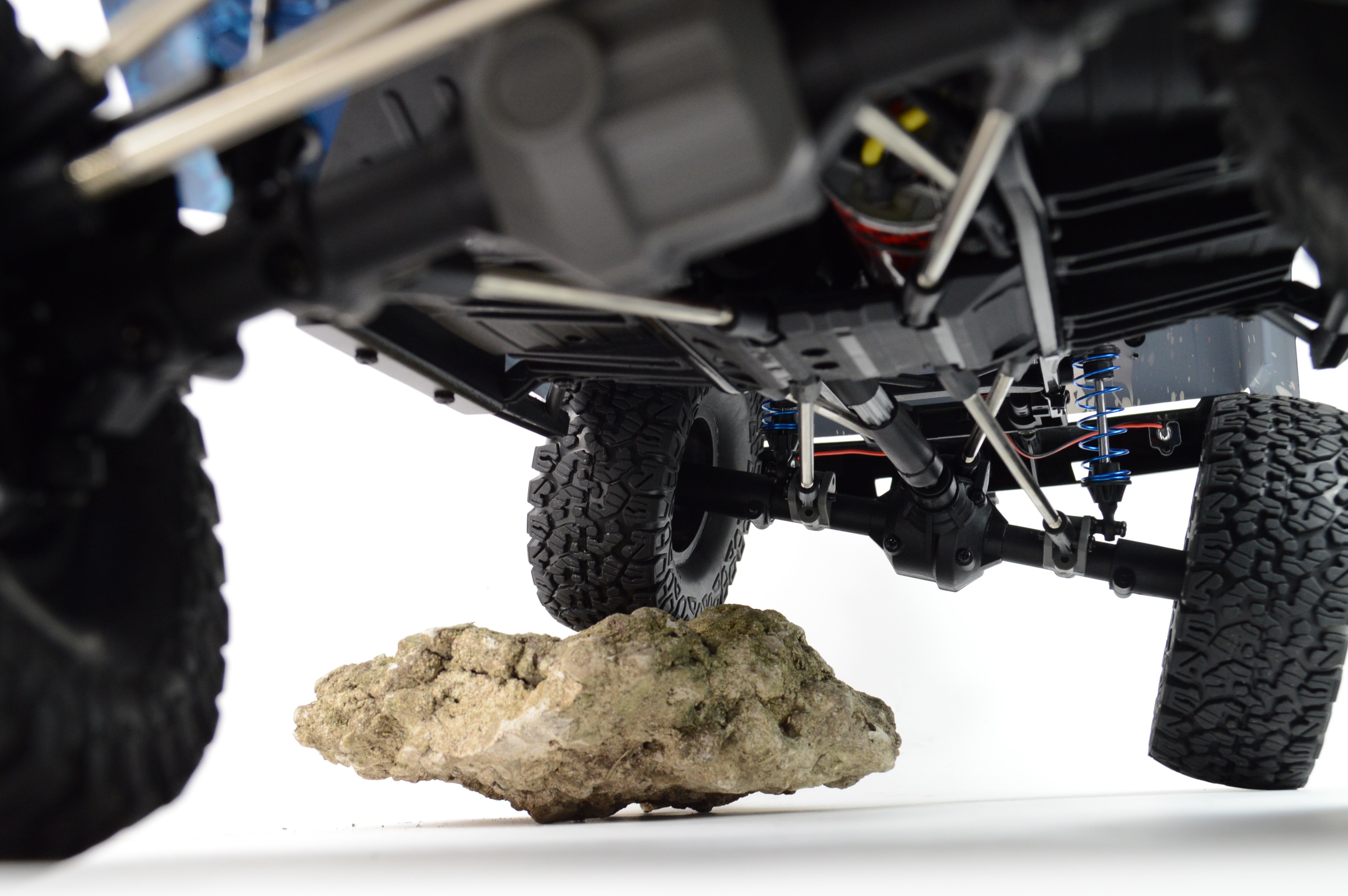

Servo mounted on the chassis for scale looks. 4 link front and rear suspension with front panhard rod for nearly zero bump steer. Strong steel suspension and steering links with M4 rod ends. Oil filled aluminium shocks with threaded shock bodies are mounted with two stage springs giving a progressive spring rate.
The realistic looking c-channel chassis frame is made from durable steel with cross braces to improve chassis rigidity. Realistic shock hoops with multiple shock mounting positions allows you to adjust your suspension for maximum performance. The open design makes maintenance quick and easy. The smooth centre skid plate reduces hang-ups on terrain. Chassis side plates hold the sliders and side body mounts while protecting the electrics. Additional holes have been added to the rear portion of the frame rails to allow wheelbase adjustments for alternative bodies.

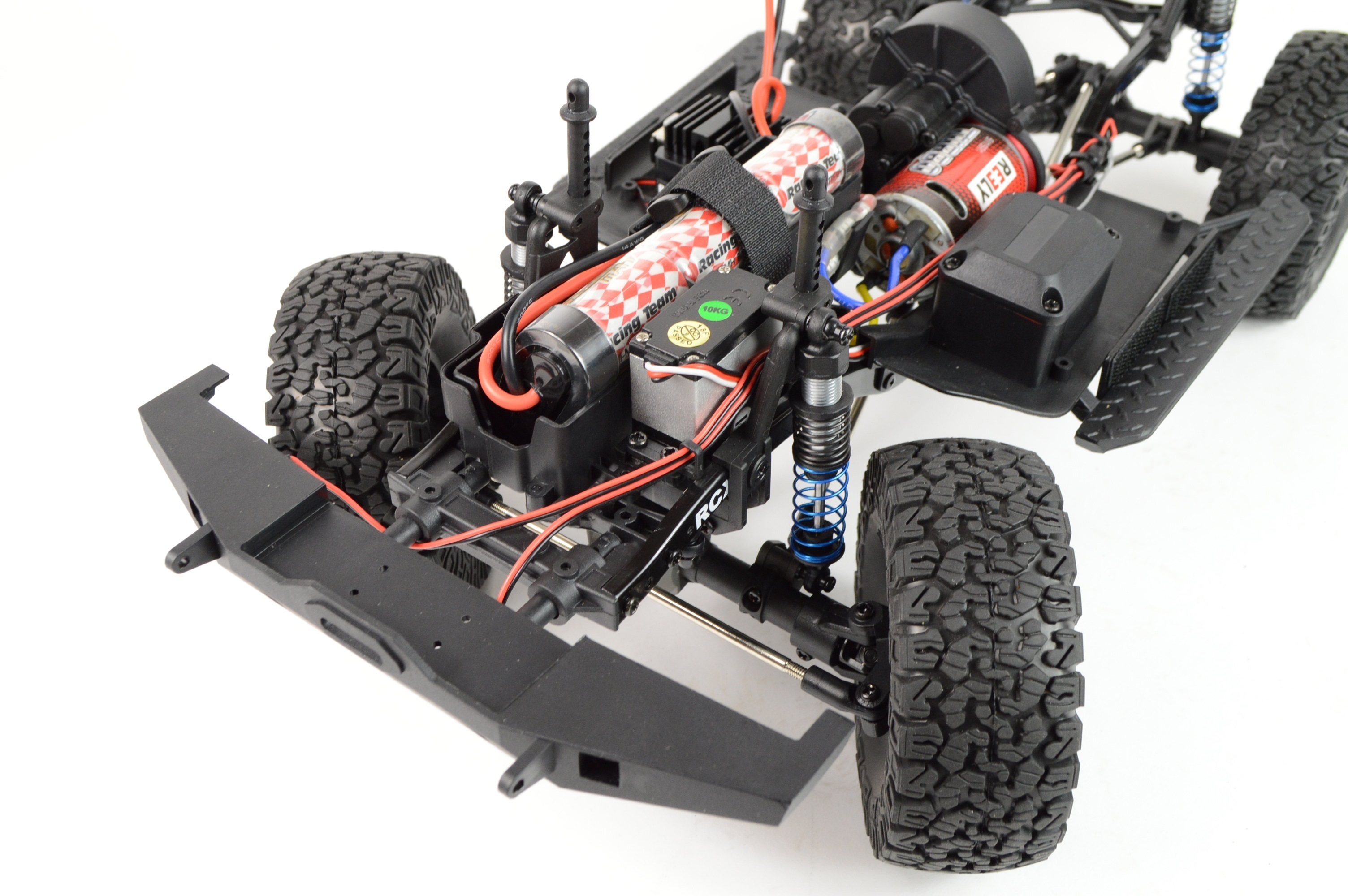

The battery tray
is located above the front axle, mounted low for better weight distribution. Easy access with Velcro strap fixing for quicker battery changes.
The receiver box
Fitted with silicone gaskets for full waterproofing, no more stress when running in mud, water, or snow. Hobbywing waterproof crawler specific ESC included. The receiver box and ESC are located on the chassis side plates for easy access. High torque servo with metal gears and dual ball bearings provide smooth and precise movement for the metal gear train. Wire routing clips throughout the chassis to keep your chassis layout looking clean.
Pre-painted PC body
With moulded scale detail parts (mirrors, door handle, fuel can and tool rack.) Scale front and rear bumpers and rock sliders. Front bumper includes a winch mounting point that fits most common winches. Front and rear led lights mounted in the bumpers. Rear tow hitch included for added scale appearance.
|Required To Use
- 8 x AA batteries for the transmitter
